Utility plate stop

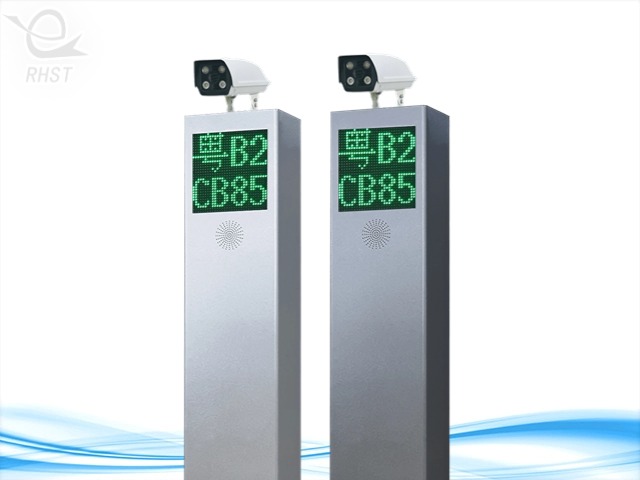

RH500

Practical version of the parking system to adapt to the needs of the current market, which will, the latest research results of practical science and technology, using local knowledge management platform, sets of advanced automatic license plate recognition technology, network technology and mobile application technology at an organic whole, with the Japanese company's powerful intelligent terminal equipment depth fusion, to realize automatic vehicle entry, wisdom, guidance, central to expend, automatic leave the whole process of management wisdom. The parking system of practical version can meet the functional requirements of most smart communities and smart parks, and is suitable for intelligent residential areas, smart buildings, industrial parks and other occasions.

 Practical version parking (RH500) technical parameters

The machine size is 1180mm*252mm*136mm

Box process the standard color of outdoor plastic spraying is iron gray and computer white

The operating voltage is AC220V/50HZ

Working environment temperature -25℃ ~ 65℃ humidity ≤95% without condensation

Communication mode TCP/IP and RS485 communication mode

Passive output of opening interface relay (output time 1S)

License plate recognition rate daytime recognition rate ≥99.8% nighttime recognition rate ≥99.6%

Identify vehicle speed in straight line ≤50 km/h curve ≤30 km/h

Camera parameters 2 million pixels, strong light suppression, automatic shutter, automatic aperture, automatic gain, backlight compensation

Identify the optimal distance of 3 ~ 6 m and adjust the focal length up to 10 m

We will support blue, black and yellow license plates, police cars, military vehicles and new energy license plates

Utility version parking (RH500) features

Smart platform supports local smart platform services, providing vehicle access records, image information, parking information query

Mobile client supports local mobile terminal to monitor vehicle yard dynamics, statistics and charging information, and supports mobile terminal to open the gate

Charging standard charging standard can be set flexibly by itself, providing 8 options of customized charging mode

The payment method supports the central charge and export charge

Parking guidance intelligent parking guidance, to achieve nearby automatic allocation of parking Spaces, automatic guidance

The car yard nesting realizes the big car yard nesting car yard, the month card and the temporary card park separately

Vehicle type recognition add vehicle type identifier to realize automatic vehicle type recognition or manual vehicle type recognition

Voice prompt mandarin prompt vehicle admission, vehicle exit, vehicle payment information

Chinese display screen can display license plate information, parking information and self-loading company name and advertising information

Report and management support personnel data and license plate data import through EXCEL, report universal query printing function
