Parking detector

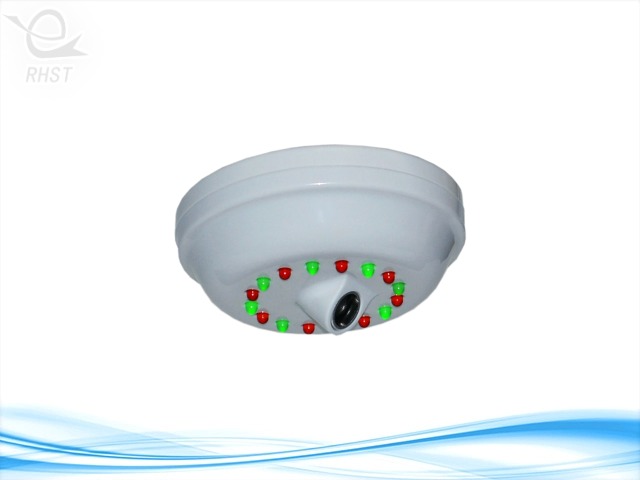

RH402

Parking spot detector, also known as parking spot detector, dynamically detects whether the vehicle is parked in real time, automatically switches and displays the parking spot status light, and uploads the information to the parking spot processor in the area.

Technical parameters of parking space detector (RH402)

Machine size 120mm*50mm round

Exterior material ABS milky white shell

Operating voltage 12V/200mA

Operating temperature -25 ° C to 65 ° C Humidity ≤95% No condensation

Detection Angle ≤50 degrees

Detection range Detection standard Level 4 1.8m to 2.7m Adjustable deviation ≤0.2m

Installation Height The installation height is equal to or slightly greater than the specified detection distance

Installation position Within 0.5 meters in front of the center line of the parking space, as close to the parking space as possible

Installation method 86 The bottom box is fixed or directly fixed to the bridge

Response speed 3S

Display mode Red indicates occupied parking space, green indicates empty parking space

Output mode 485 Communication output
