Lane controller

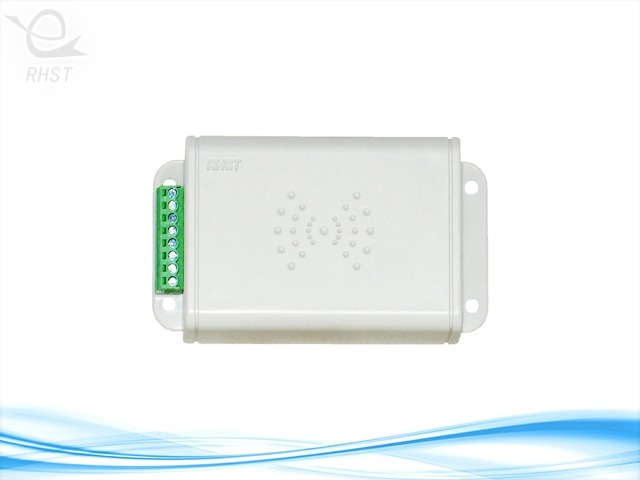

RH851

Lane controller is auxiliary equipment, parking management system is mainly used for coordination of lane two-way traffic pass, accurate identification of in and out of the vehicle and the direction of traffic flow, traffic signals of the automatic control coordination, can realize the car follow up counting process, two-way car to remind or alarm automatically processing, identification of channel is the manual control car automatic reset or reset. The reset time is adjustable from 10 to 80 seconds. The value of the middle 3 bits of the motherboard SW1, 8421 yards multiplied by 10 equals the reset time. The product is suitable for underground garage single passage access lane control.

Lane controller (RH851) technical parameters

The machine size is 136mm*136mm*20mm

The external material is installed in the power control box

Operating voltage: 12V/500mA

Working environment temperature -25℃ ~ 65℃ humidity ≤95% without condensation

Communication mode RS485

Input interface 2 inputs are connected to the signal output of vehicle detector

Output interface 2 output, 1 for traffic lights, 1 for alarm
