Vehicle detector

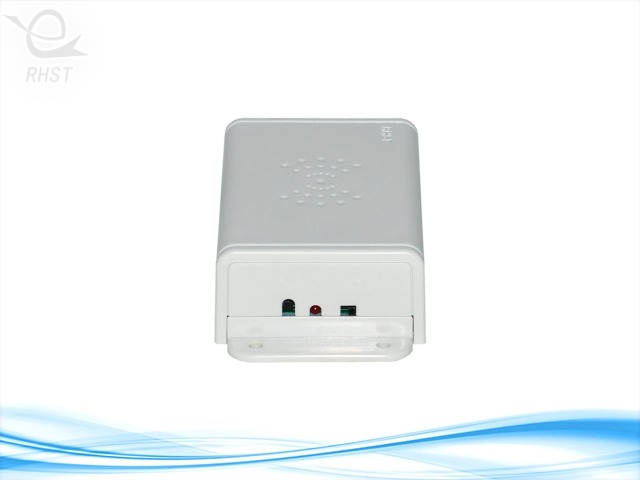

RH401

Test whether the vehicle is entering or leaving the area of the test coil.

Vehicle detector (RH401) technical parameters

Machine size: 100mm×60mm×30mm

Outer material ABS ivory shell

Operating voltage: 12V/500A

Working environment temperature -25℃ ~ 65℃ humidity ≤95% without condensation

The frequency range is 50KHZ ~ 500KHZ, and the temperature change frequency is automatically compensated

Response speed: 100ms

Sensitivity level 2 sensitivity adjustment

Signal input is completely isolated to prevent lightning and leakage

The output mode is passive output of the 2-way relay. The output of the 1-way vehicle is output when it exists, and the output of the 1-way vehicle is 1S away from the output
