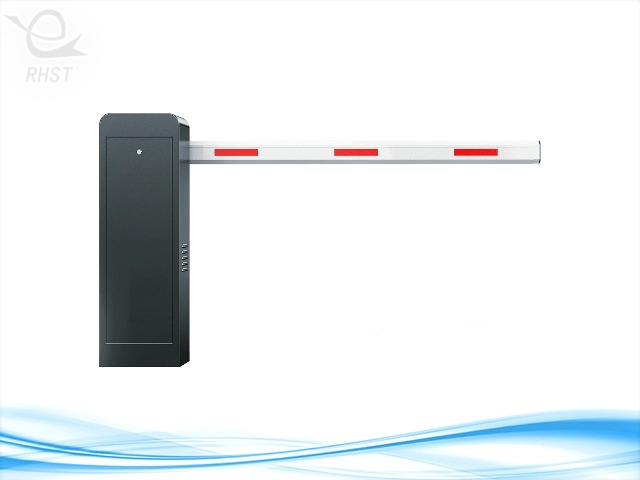

Straight rod brake
RH701

The gate is also known as the vehicle brake, used for the entrance of the lane to release or prohibit the vehicle's execution equipment. According to the running speed is divided into ordinary gate and fast gate. According to the structure of the rod, it is divided into straight gate, curved gate and fence gate.

Technical parameters of automatic gate

The machine size is 250mm*280mm*850mm

Exterior exterior baking varnish

The standard color is yellow, light gray and dark gray

Operating voltage 220V/3A

Working environment temperature -25℃ ~ 65℃ humidity ≤95% no condensation

Motor power 150 ~ 300W

Running time 3 seconds straight bar, 6 seconds curved bar and fence 6 seconds fast 3 seconds, high speed 1.5 seconds

Brake bar length straight bar 3 m ~ 6 m curved bar and fence 3 m ~ 5 m fast 1 m ~ 3 m
