Elevator controller

RH601 is an intelligent elevator controller. It works with scanning code, face recognition device or elevator card reader to identify the identity and permission information of users and visitors. Legitimate users and visitors will output their permission to the floor controller and start the elevator to reach the corresponding floor. When the recognition of electric vehicles will voice alarm to remind and suspend the operation of the elevator.

Technical parameters of intelligent ladder controller (RH601)

The smart platform supports smart cloud services and provides elevator record and image information query

The mobile client supports the mobile phone to take the ladder directly, scan the code to take the ladder, and visitors to take the ladder

Face recognition support registered face information automatic recognition ride ladder

Dimensions main board 136mm x 136mm x 32mm card reader antenna 86mm x 60mm x 15mm

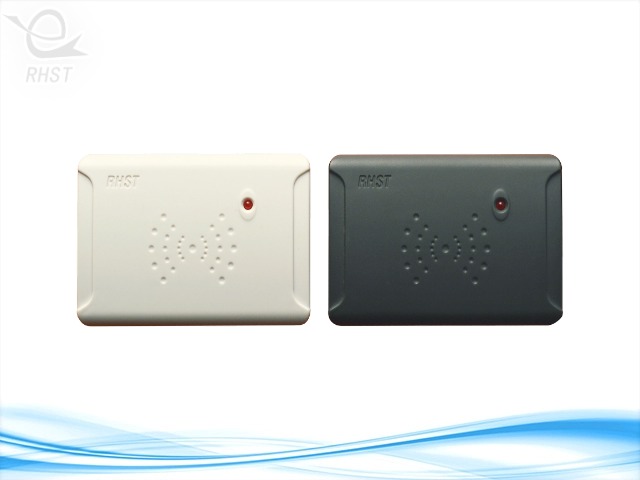

Appearance material card reader antenna appearance has two kinds of computer white and dark gray

Operating voltage 12V/2A (including floor controller)

Operating temperature -25 ° C to 65 ° C Humidity ≤95% No condensation

Working mode Supports online and offline work

Card type IC card and ID card

Read/write distance IC card ≤50mm ID card 50mm to 80mm

Number of elevators 128 elevators

Number of floors: 64 or 128 floors per IC card, 24 floors per ID card
