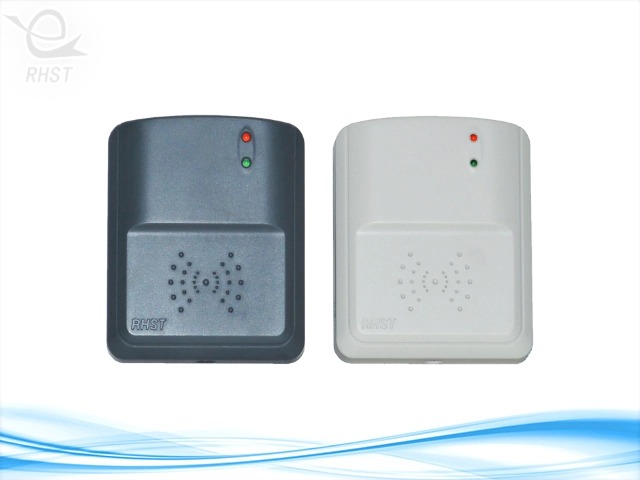

RH602 is a simple ladder controller, which is used for card recognition. The valid card outputs the permission to the floor controller and starts the elevator.

Simple ladder controller (RH602) technical parameters

Machine size 95mm*86mm*20mm

The shape material square plastic case has computer white and dark gray two kinds

Operating voltage 12V/2A (including floor controller)

Working environment temperature -25℃ ~ 65℃ humidity ≤95% without condensation

Work mode only works offline

Card type IC card

Reading and writing distance IC card ≤80mm

The number of elevators is 128

IC card single elevator 64 or 128 floors
