RH501 access control has regular access control functions and can also be used for smart access control card reader, providing IC or ID choices. This product is suitable for the area gate, unit building, administrative business office and other occasions.

Integrated access control (RH501) technical parameters

Machine size 95mm*86mm*20mm

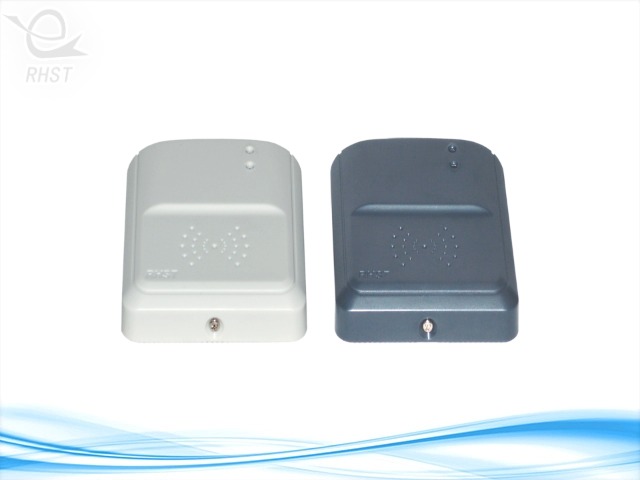

The shape material square plastic case has computer white and dark gray two kinds

Operating voltage 12V/500mA (excluding lock)

Working environment temperature -25℃ ~ 65℃ humidity ≤95% without condensation

Card type IC card and ID card

Reading and writing distance IC card ≤50mm ID card 50mm ~ 100mm

Communication mode RS485 communication mode

Input interface door button and door magnetic detection each have 1 channel input

Passive output of door lock output relay (both electric and magnetic locks can be controlled, lock controller should be added)
