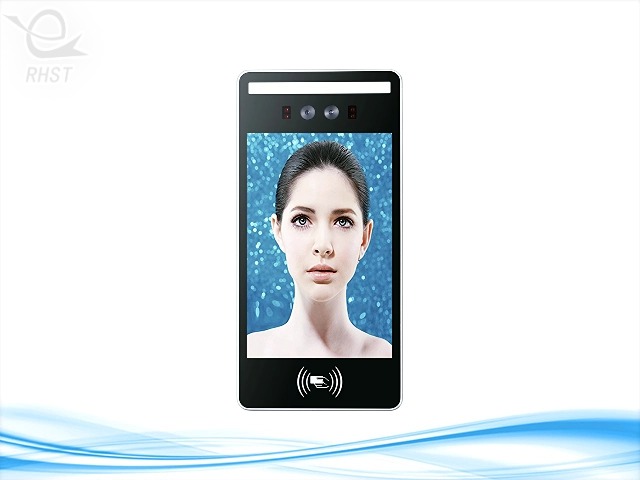

RH508 is a binocular living face temperature access control or temperature access control machine. It has routine access control functions and supports the temperature measurement function at a distance of 30 cm. When the temperature is too high, it gives an alarm. This product is suitable for smart parks, smart buildings, business centers to improve epidemic prevention and control, screening high-temperature groups and other public places that need to use the function of temperature control system.

Technical specifications of face temperature access control (RH508)

Machine dimensions 272mm*136mm*34mm

Exterior material aluminum alloy bottom shell

Operating voltage 12V/3A (lock not included)

Operating temperature -25 ° C to 65 ° C Humidity ≤95% No condensation

Communication mode TCP/IP

Face recognition rate ≥99%

Identification time ≤1S

Identification Angle Rotation Angle < 25° elevation Angle < 25°

Temperature measurement distance 30CM

The identification distance is 0.5 to 2M

The maximum capacity is 10,000

Camera parameters 2 million pixels, strong light suppression, backlight compensation

Screen size 8 inches

Door lock output relay passive output (electric lock or magnetic lock can be controlled, need to add lock controller)

Installation mode Wall hanging or column fixed
